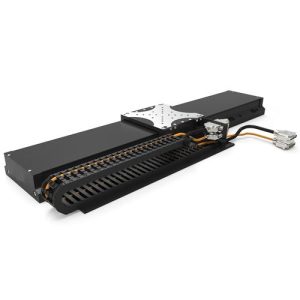

Linear Module BZDM175 Dual Mover Series

Height: 101mm, Width: 175mm
Continuous thrust: 165N ~ 496N
Peak thrust: 459N ~ 1378N
Temperature rise suppressed to 0.07°C/W
Thrust ripple less than 2%

  • Product Details
Technical Parameters
Module ModelBZDM175-SH110BZDM175-SH200BZDM175-SH290
Configuration
DriverBZD EAS-L1(Or other products)
Guide Rail Specification151515
Number of Sliders444
Performance Parameters
Peak ThrustN4599191378
Continuous ThrustN166332498
Back Electromotive ForceVpeak/m/s44.1688.32132.47
Repeat Positioning AccuracyumMagnetic Grating:±3;Optical Grating:±2;On-Rail Detection:≤±5
Mechanical Parameters
Module Widthmm175175175
Module Heightmm101101101
Payload Stage Width Hmm110200290
Effective StrokemmSSS
Mechanical StrokemmS+40S+40S+40
Total Module LengthmmS+335S+425S+515
Module Mounting Hole Distance Cmm100100100
Effective StrokeSmm200300400500600700800
2NPCS681012141618
Effective StrokeSmm900100011001200130014001500
2NPCS20222426283032
