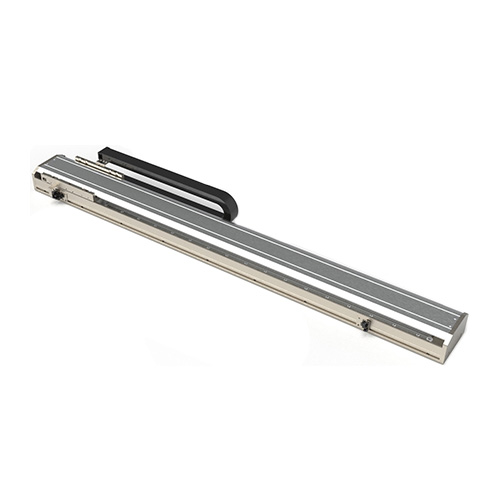

BZDM-178 Series

ZWM-178 Series

Technical parameters
Mover mass(kg)	1.5	Maximum terminal voltage(VDC)		310
Maximum thrust(N)	504	Motor constant(N/Sqrt(W))		16.63
Continuous thrust ( N )	182	Feedback resolution (incremental)	Optical Grating	0.5μm/lμm/5μm selectable
Forward attraction(N)	1060		Magnetic grating	0.2μm/0.5μm/lμm selectable
Maximum current(Arms)	9.1		On-rail detection	2.5μm
Continuous current(Arms)	3.38	Repeat positioning accuracy	Optical Grating	≤±2μm
Thrust constant(N/Arms)	53.8		Magnetic grating	≤±5μm
Linear back electromotive force constant(Vpeak/m-s¹)	46.8		On-rail detection	≤±5μm
Linear resistance(Ohms)	5.06	Straightness		±5μm/300mm
Linear inductance(mH)	23.2	Optoelectronic switch		SUX-PM-L45
Time constant(ms)	4.58	Motor installation method		Horizontal installation / side-hanging installation
Maximum coil temperature(℃)	130	Compatible with driver		BZD driver or other brands

Typical Motion Characteristics
(Tested with full-range acceleration and deceleration, triangular trajectory)

Stroke(mm)

Load(kg)

190

390

590

790

990

####

1790

####

Maximum speed(m/s)

####

1.97

####

4.23

####

5.3

####

1.97

####

4.23

####

5.3

Stroke(mm)	190	390	590	790	990	1190	####	####	1790	####	####	####	####	####	####	####
T	539	739	939	1139	1339	1539	####	####	2139	####	####	####	####	####	####	####
B	120	170	70	120	170	70	120	170	70	120	170	70	120	170	70	120
A	2	3	4	6	7	8	10	1l	12	14	15	16	18	19	20	22
N	8	10	12	16	18	20	24	26	28	32	34	36	40	42	44	48
Weight(kg)	####	####	#####	31	35.4	39.8	####	####	53	####	####	####	####	75	####	####
